รายละเอียดเพิ่มเติม

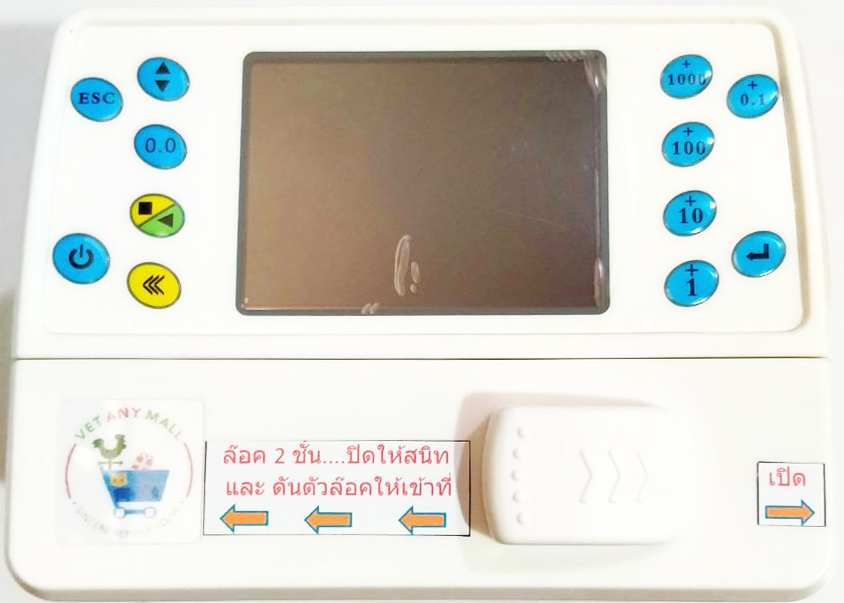

เครื่อง INFUSION PUMP สำหรับให้สารละลาย อาหารและยา ทางหลอดเลือดดำ (Vein) ในกรณีที่ต้องการควบคุมความละเอียดหรือควบคุมความแม่นยำ ในการส่งสารตามปริมาณและอัตราที่ตั้งไว้
เข้าในหลอดเลือดดำ (Vein) อย่างถูกต้อง
Infusion Principle | Fingertip Peristaltic Pump |
I.V.Set Compatibility |
Open System, match all brands of qualified PVC,TPE I.V.sets with external diameter of 3.4mm-4.5mm |
Range of Flow Rate | 50.0~800.0ml/h at 0.1ml/h step; |
Infusion Mode |
Rate, Rate-Time, Rate-Volume, Time-Volume, Drop-Volume, Drop-Time, Body Weight |
Volume Range | 0.1~9999.9 ml, 0.1 ml step |
Flow Rate | 1.0~800.0ml/h, 0.1ml/h step |
Drop Rate | 1~333d/min, 1d/min step |
Time | 1s~99h59m59s, 1s step |
Dose | 0.1~999.9mg, 0.1mg step |
Mg/kg/h | 0.1~999.9mg/kg/h, 0.1mg/kg/h step |
Body-weight | 1~300kg, 1kg step |
KVO rate | 1.0~5.0 ml/h, 0.1ml/h step |
Preset volume | 0.1~9999.9 ml, 0.1ml step |
Occlusion Pressure | In the range of 10 kPa to 140 kPa, tere are 8 levels of sensitivity |
Air in line Detection | Ultrasonic wave |
Visible & Audible Alarms |
Air in line, Down Stream Occlusion, Door Open, VTBI Completion, Near Completion, Low Battery, Battery Exhausted, Low Temperature, Motor Malfunction, A.C Disconnection, A.C connection, I.V set dislocation, MPU Error, Battery Charing, Battery Charing Completion, Circuit Malfunction, |
Internal Battery | Dc11.1v |
Power Consumption | 25VA |
Power AC | 100V-240V 50HZ/60HZ |
Dimension & Weight | 7.5×9.5×14.2cm ; 0.85Kg |
