Product Data
1 SR-1000V | www.siui.com 23.08.2017_V3.X
SR-1000V
— Portable Integrated
Veterinary DR System
| Generator | Power Supply | Built-in Battery | |
| Max Power Output (kW) | 2 kW | ||
| Tube Voltage (kV) | 40—100 kV | ||
| Tube Current (mA) | 25mA(40—60kV); 20mA(61—100kV) |
||
| 0.4-50 mAs | |||
| Current time product (mAs) |
( Range: 0.40、 0.50、 0.63、 0.80、 1.00、 1.25、 1.6、 2.0、 2.5、 3.2、 4.0、 5.0、 6.3、 8、 10、 12.5、 16、20、 25、 32、 40、 50) |
||
| Working Frequency | ≥50kHz | ||
| Tube | Toshiba | ||
| Focus spot (mm) | 1.2 x 1.2 mm | ||
| Total Filtration | 3mmAl Collimator included | ||
| Collimator | Continuous with Indicator |
Centre | + |
| Detector | Receptor Type | Amorphous Silicon | |
| Size | 14 inch ×17 inch | ||
| Active Pixel Area | 343×416 mm | ||
| Pixel Pitch | 150 μm | ||
| Pixel Matrix | 2304×2800 | ||
| Limiting Resolution | 3.3 lp/mm | ||

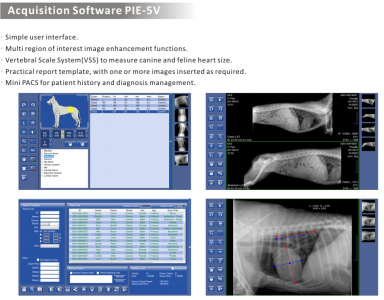

| Digital Image Acquisition Software(PIE-5) |
Personalized Interface, Patient registration, image acquisition & processing, trim, negative, image inversion, rotation, zoom, annotation, shifting, display, image window width/level adjustment, DICOM image transfer, worklist function, statistic and query, mini PACS system |
||
| Digital Image Acquisition (laptop) |
14-inch monitor/1366*768 pixel /Intel(R)Core(TM)i3 CPU/1.7GHz CPU Main Frequency/4G RAM/2.0kg |
Product Data
2 SR-1000V | www.siui.com 23.08.2017_V3.X
