Vital sign Monitor รุ่น VAM-MONITOR-IE12V

฿40,800.00฿79,400.00

รหัสสินค้า: VT-MONI-IE12V หมวดหมู่: , ,

รายละเอียดเพิ่มเติม

Share from This to your

Vital sign Monitor รุ่น VAM-MONITOR-IE12V
เครื่องวัดค่าสัญญาณชีพทางสัตวแพทย์ รุ่น VAM-MONITOR-IE12V

สามารถใช้ทำการตรวจร่างกาย Physical examination  หน้าจอ Touch Screen ขนาดใหญ่ 12 นิ้ว ทั้งการวัดความดัน

วัดอัตราการ วัดค่า Oxygen Saturation (SPO2) ,Pulse rate ,อุณหภูมิ Temperature ,และการวัดความดันในสัตว์

แบบ NIBP ด้วย sensor ที่พัฒนามาใช้ในสัตว์โดยเฉพาะ ทนทาน ได้มาตรฐาน พร้อมทั้งบริการหลังการขาย 1 ปีเต็ม

จาก VetAnyMall

ผู้จัดจำหน่ายและศูนย์ซ่อมอย่างเป็นทางการ

Product Specification
I.1 ECG Specification
I.1.1 Lead configuration
Standard 3-lead or 5-lead
3-lead RA、LA、LL,Lead method:I,II,III
5-lead RA、LA、LL、RL、V,Lead method:I,II,III,aVR,aVL,aVF,V
I.1.2 Increase 250,500,1000,2000
I.1.3 HR Range
Large animals 15 ~ 300bpm (beat/minute)
Medium-sized animals/ Small animals 15 ~ 350 bpm(beat/minute)
Precision ±1% or ±1bpm,the larger prevails
Resolution 1 bpm(beat/minute)
I.1.4 Sensitivity  > 200 uV (Peak-to-peak value)
I.1.5 Input Impedance  >5(megohm)
I.1.6 Bandwidth Diagnostic mode 0.05~130Hz
Monitoring Mode 0.5~40Hz
Operation mode 1~20Hz
I.1.7 Common Mode rejection Ratio Diagnostic mode > 90 dB
Monitoring Mode > 100 dB
Operation mode > 100 dB
I.1.8 Pole Polarization Vvoltage Range  300mV
I.1.9 Pacing Pulse Test

Test pacing pulse in accordance with the following conditions:
Amplitude: ±2 mV ~ ±700mV
Width: 0.1ms ~ 2ms
Risetime: 10us~100µsUser Manual for Multi-parameter Veterinary Monitor
I.1.10 Pacing pulse inhibition
When pacing analysis switch is on, pacing pulse in accordance with the following conditions are restrained,but affection against HR calculation.Amplitude: ±2 mV ~ ±700mV
Width: 0.1ms ~ 2ms Risetime: 10us ~ 100µs

I.1.11 Baseline Recovering Time After defibrillation< 3 seconds
I.1.12 Signal Range  8 mV (Peak-to-peak value)
I.1.13 Calibrating Signal 1mV(Peak-to-peak value),precision ±5%
I.1.14 ST Segment Measuring Volume
Measuring range: -2.0mV ~ +2.0mV
Measuring precision: Ranging -0.8 mV ~ +0.8mV,

measuring error is ±0.02mV or ±10%,. The larger prevails.
No definition for other ranges.
I.2 RESP Specification
I.2.1 Measuring Method RA-LL impedance
I.2.2 RESP Impedance Measuring Range 0.3~3Ω
I.2.3 Base Impedance Range 200~4000Ω
I.2.4 Bandwidth 0.1~2.5Hz
I.2.5 RESP Rate Range
Large animals 0~120BrPM
Medium-sized animals/ Small animals 0~150 BrPM
Resolution 1 BrPM
Precision ±2 BrPMUser Manual for Multi-parameter Veterinary Monitor
I.2.6 Asphyxia Alarm 10~40 seconds
I.3 NIBP Specification
I.3.1 Measuring Method Pulse wave oscillometry
I.3.2 Work Mode Manual/Automatic/STAT
I.3.3 Measuring Interval of Automatic Measuring Mode
1,2,3,4,5,10,15,30,60,90,120,180,240,480 minute(s)
I.3.4 Measuring Time of STAT Mode 5 minutes
I.3.5 PR range 40 – 240 bpm
I.3.6 Measuring Range and Precision Range
Large animals Systolic blood pressure 40~270mmHg
Diastolic blood pressure 10~215mmHg
Mean blood pressure 20~235mmHg
Medium-sized animals Systolic blood pressure 40~200mmHg
Diastolic blood pressure 10~150mmHg
Mean blood pressure 20~165mmHg
Small animals Systolic blood pressure 40~135mmHg
Diastolic blood pressure 10~100mmHg
Mean blood pressure 20~110mmHg
Static pressure range 0~300mmHg
Static pressure precision ±3mmHg
Pressure precision: Max. average error: ±5mmHg;Max. standard deviation: ±8mmHg
I.3.7 Overvoltage protection

Large animals mode 300 mmHg
Medium-sized animals mode 240 mmHg
Small animals mode 150 mmHg

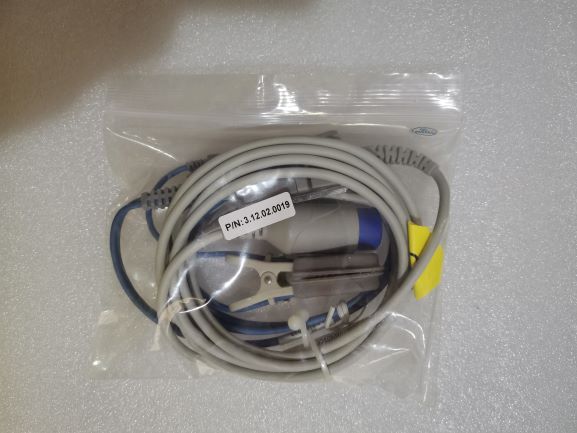

I.4 SpO2 Specification
I.4.1 SpO2User Manual for Multi-parameter Veterinary Monitor
Range 0~100%
Resolution 1%
Precision 70~100%:±2 DIGIT 0%~69%:no definition given
I.4.2 PR Range 20~300bpm Resolution 1bpm
Precision ±3bpm

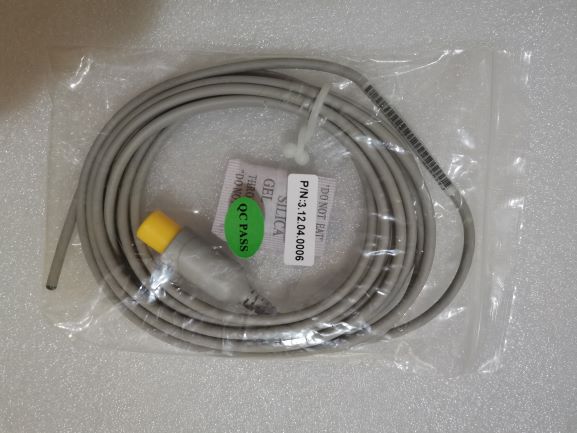

I.5 TEMP Specification
I.5.1 suitable for temperature sensor  YSI series,CYF series
I.5.2 Channel quantity 2 channels
I.5.3 Measuring Range 0~50℃ Resolution 0.1℃
Precision ±0.1℃(excluding sensor error)
I.6 IBP Specification Label ART, PA, CVP, RAP, LAP, ICP, P1, P2
Measuring and alarm range
ART 0 ~ 300 mmHg
PA -6 ~ 120 mmHg
CVP/RAP/LAP/ICP -10 ~ 40 mmHg
P1/P2 -10 ~ 300 mmHg
Press Sensor
Sensitivity 5 uV/V/mmHg
Impedance 300-3000Ω
Resolution 1 mmHg
Accuracy ±2% or ±1mmHg, which great
Actualization interval about 1 Sec.

ข้อมูลเพิ่มเติม

accessory option เพิ่มเติมคุณสมบัติ

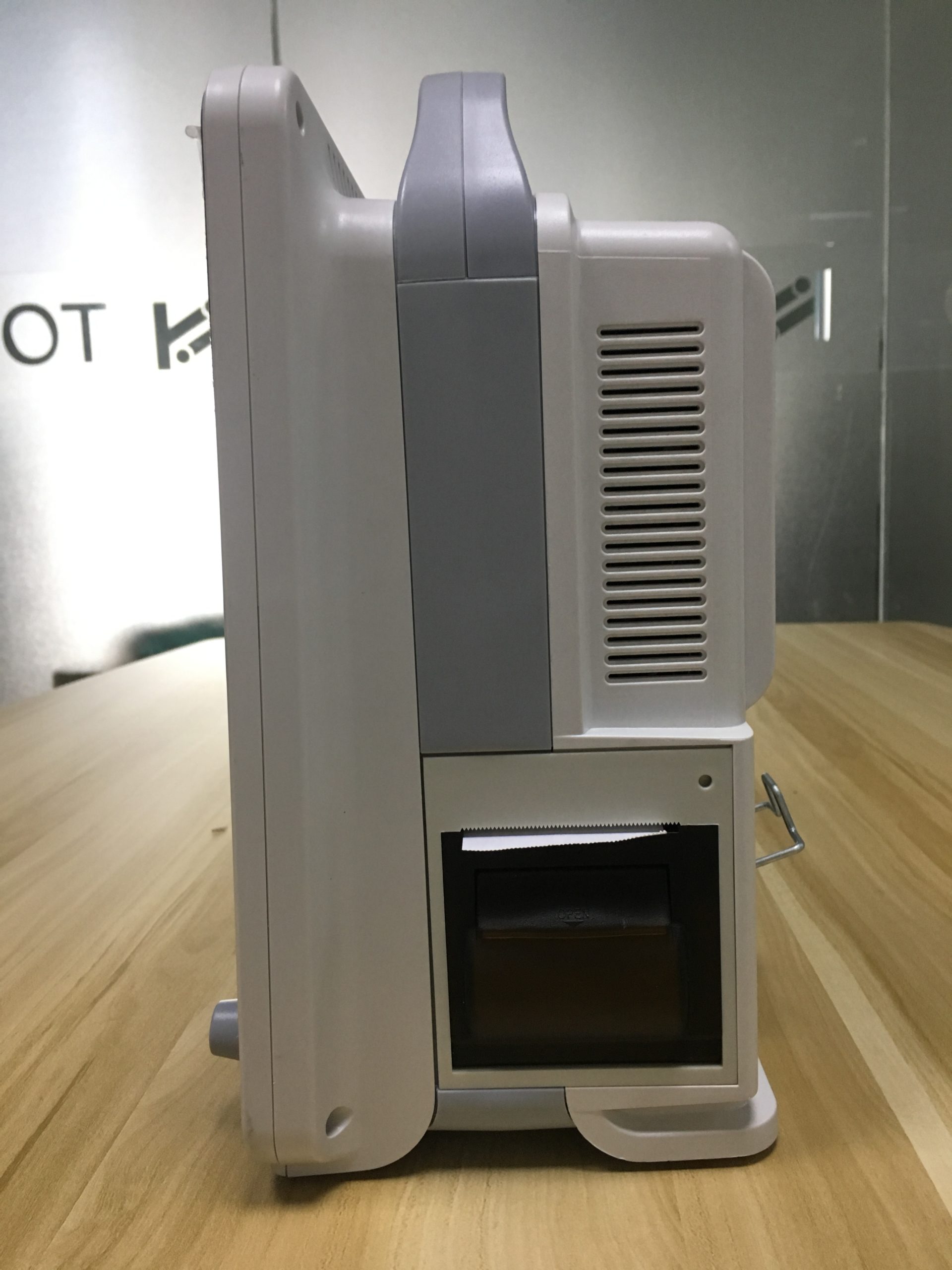

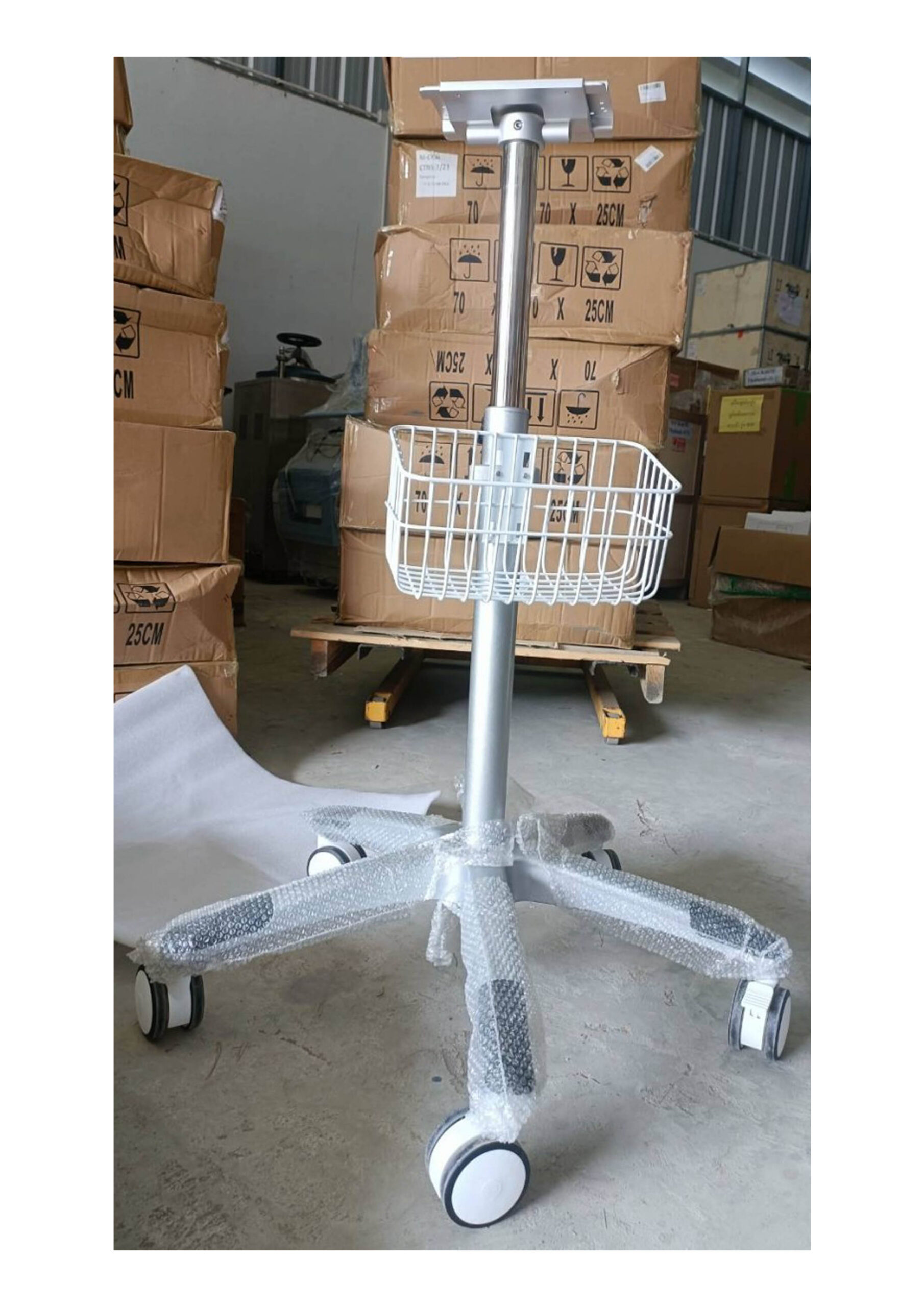

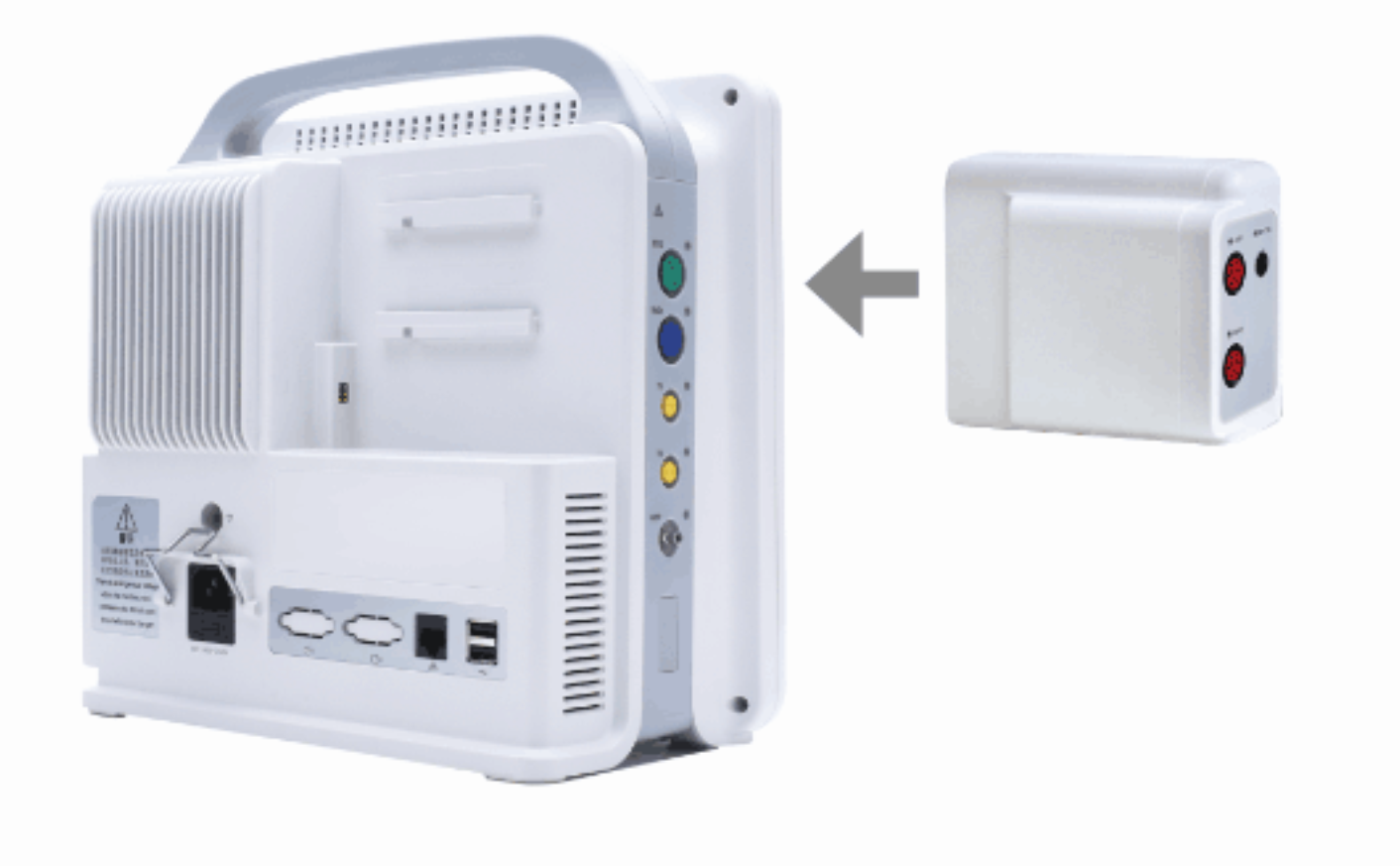

SPO2+TEMP+ECG +NIBP, Printer ปริ้นเตอร์, ETCO2 module, เพิ่มชุดขาวาง
