Vital Sign Monitor 12″ PM9000A+

฿32,180.00

สินค้าหมดแล้ว

รหัสสินค้า: VT-MONI-PM9000 หมวดหมู่: , , ,

รายละเอียดเพิ่มเติม

Share from This to your

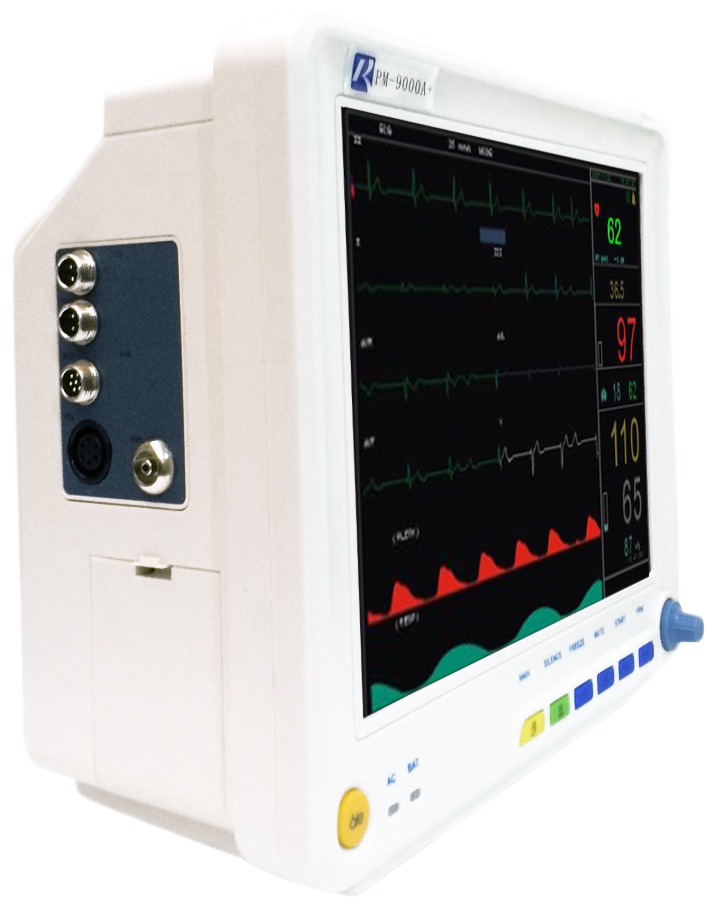

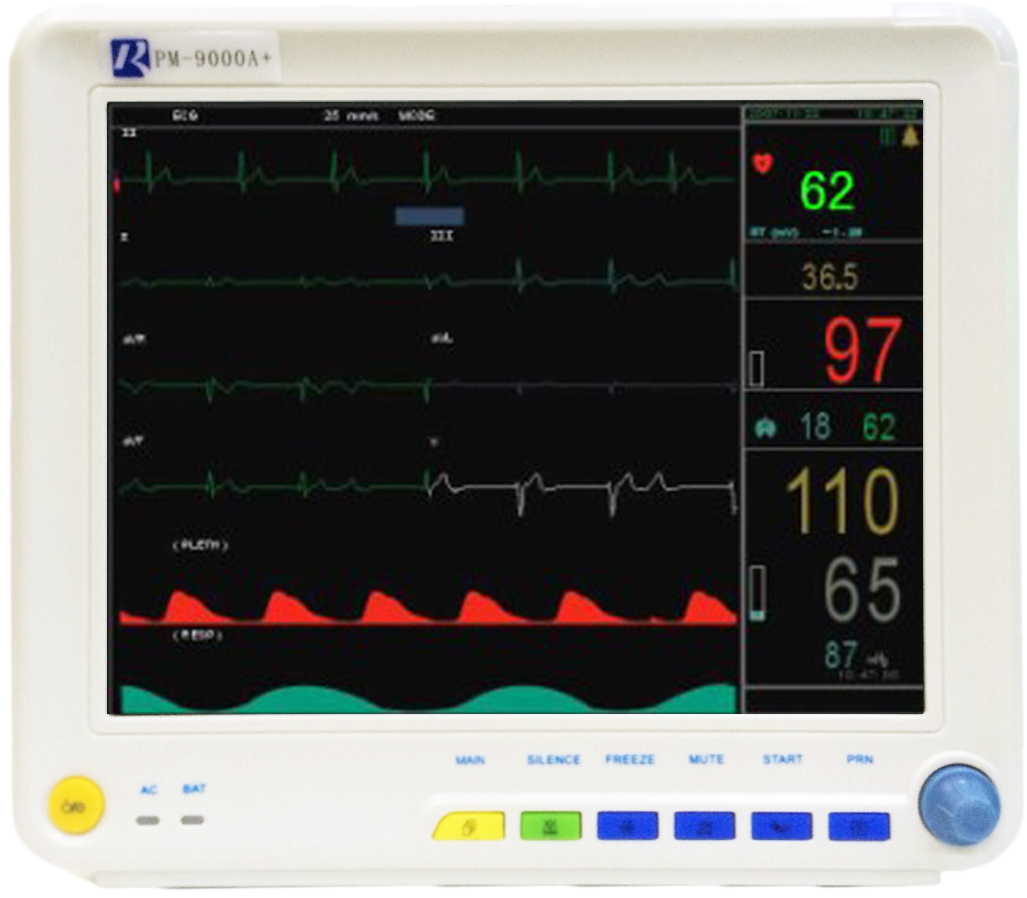

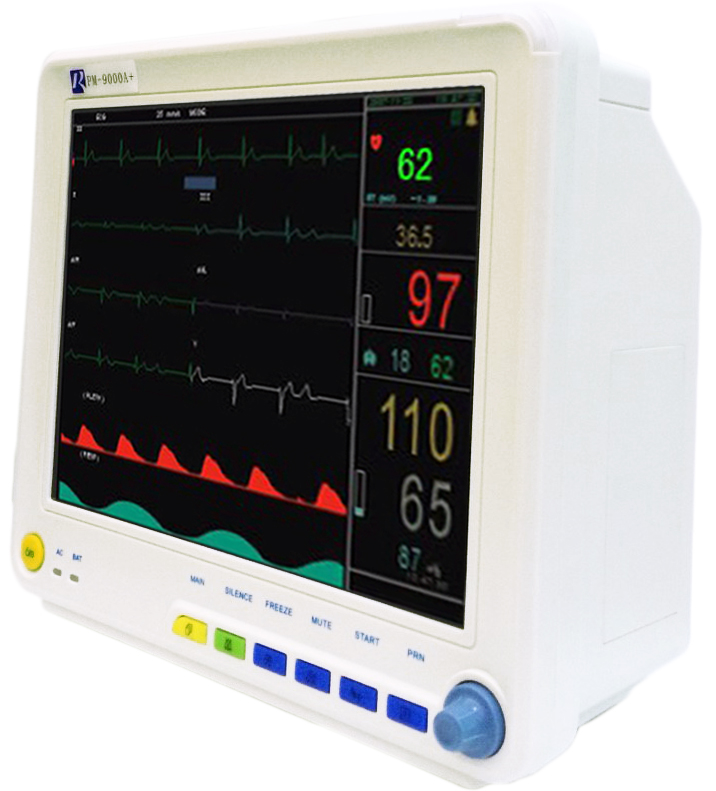

เครื่องตรวจวัดสัญญาณชีพ PATIENT MONITOR ใช้งานง่ายด้วยจอสี 12 นิ้ว  ผลิตจากวัดสดุอย่างดี มีน้ำหนักเบาสามารถเคลื่อนย้ายได้อย่างสะดวก ทนทาน ทันสมัย ใช้วัดค่าการทำงานของหัวใจ (ECG) วัดความดันเลือดแบบภาpนอก (NIBP) วัดค่าความอิ่มตัวของออกซิเจนภายในเลือด(SpO2) อุณหภูมิ(TEMP)และอัตราการหายใจ(RR)

คุณสมบัติทางเทคนิค

Size 300mm*230mm*130mm
Weight

5Kg

(excluding accessories and embedded batteries)

Display screen 12 inch TFT Color LCD Flat
Resolution  800*600
Mode continuous operation
Leads choices

All,I,II, III,aVF,aVR,aVL.V1-6

chest leads showed

Gains options *1,*2,*0.5,and4 four trenches
Frequency 0.5Hz-100Hz

Common-mode signal

inhibition

More than 70dB
Scan rate 12.5 mm/S, 25mm/S, 50 mm/S standard tree stalls.
HR ± 5bpm
Precision calibration signal 1mv (peak, ±3% accuracy)
ST detection measurement range (-1.0mV—-+1.0mV)
Using Standard meet the ANSI / AMI EC13-2002 standard
Response time 1s
Alarm sound and Light
Preset heart rate range (Alarm over  preset numerical)
Ceiling 1-255 bpm adjustable
Threshold 0-254 bpm adjustable



หมายเหตุ หากนำไปใช้ในคน จะมีค่าบริการคาริเบทและออกเอกสารรับรอง เพิ่ม 3,000.- / เครื่อง
