รายละเอียดเพิ่มเติม

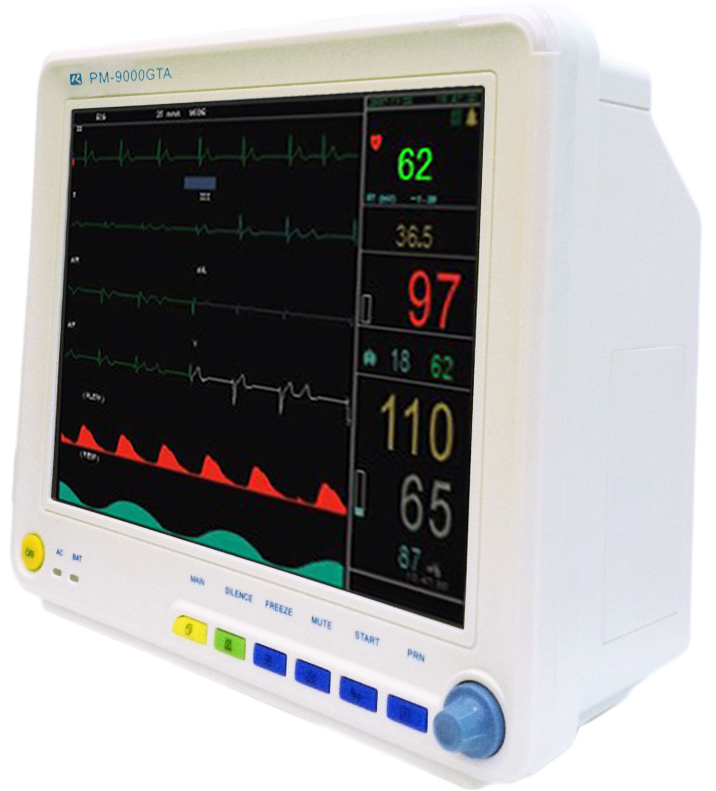

เครื่องตรวจวัดสัญญาณชีพ PATIENT MONITOR ใช้งานง่ายด้วยจอสี 12 นิ้ว ผลิตจากวัสดุอย่างดี น้ำหนักเบา
เคลื่อนย้ายได้อย่างสะดวก ทนทาน ทันสมัย ใช้วัดค่าการทำงานของหัวใจ (ECG) วัดความดันเลือดแบบภายนอก
(NIBP) วัดค่าความอิ่มตัวของออกซิเจนภายในเลือด(SpO2) อุณหภูมิ(TEMP)และอัตราการหายใจ(RR)

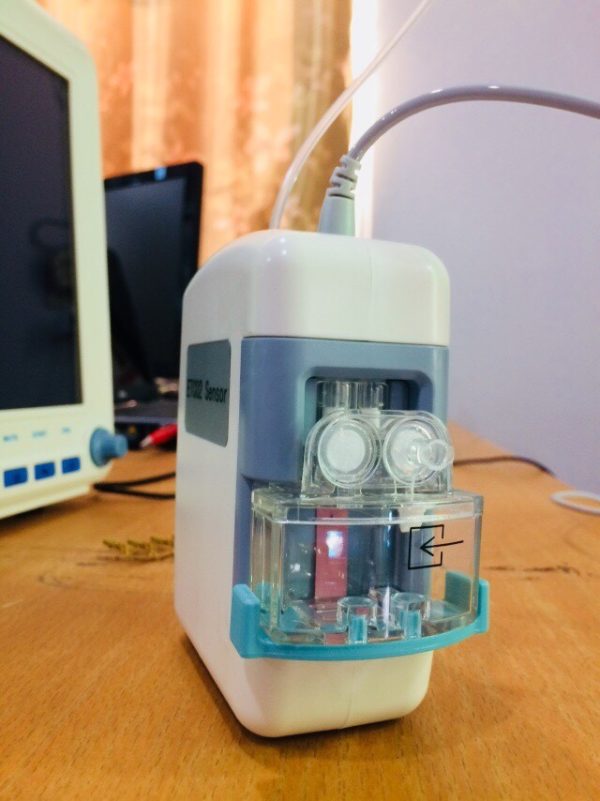

วัดค่าความเข้มข้นของคาร์บอนไดออกไซด์ในขณะหายใจออก (ETCO2)
คุณสมบัติทางเทคนิค
Size | 310mm*270mm*150mm |
Weight |
5Kg (excluding accessories and embedded batteries) |
Display screen | 12 inch TFT Color LCD Flat |
Resolution | 800×600 |
Mode | continuous operation |
Leads choices |
All,I,II, III,aVF,aVR,aVL.V1—6 chest leads showed |
Gains options | ×1,×2,×0.5,and×4 four trenches |
Frequency | 0.5Hz-100Hz |
Common-mode signal inhibition |
More than 70dB |
Scan rate | 12.5 mm/S, 25mm/S, 50 mm/S standard tree stalls. |
HR | ± 5bpm |
Precision calibration signal | 1mv (peak, ±3% accuracy) |
ST detection | measurement range (-1.0mV—-+1.0mV) |
Using Standard | meet the ANSI / AMI EC13-2002 standard |
Response time | 1s |
Alarm | sound and Light |
Preset heart rate range | (Alarm over preset numerical) |
Ceiling | 1-255 bpm adjustable |
Threshold | 0-254 bpm adjustable |
CO2 Initial Settings |
O2Compensation : Rang 0- 100 % Balance Gas : room air Gas Temp : Range 0.0-50.0 Atmospheric pressure : Range 400-850 Calculate Cycle : “1 breath “ |
หมายเหตุ หากนำไปใช้ในคน จะมีค่าบริการคาริเบทและออกเอกสารรับรอง เพิ่ม 3,000.- / เครื่อง
