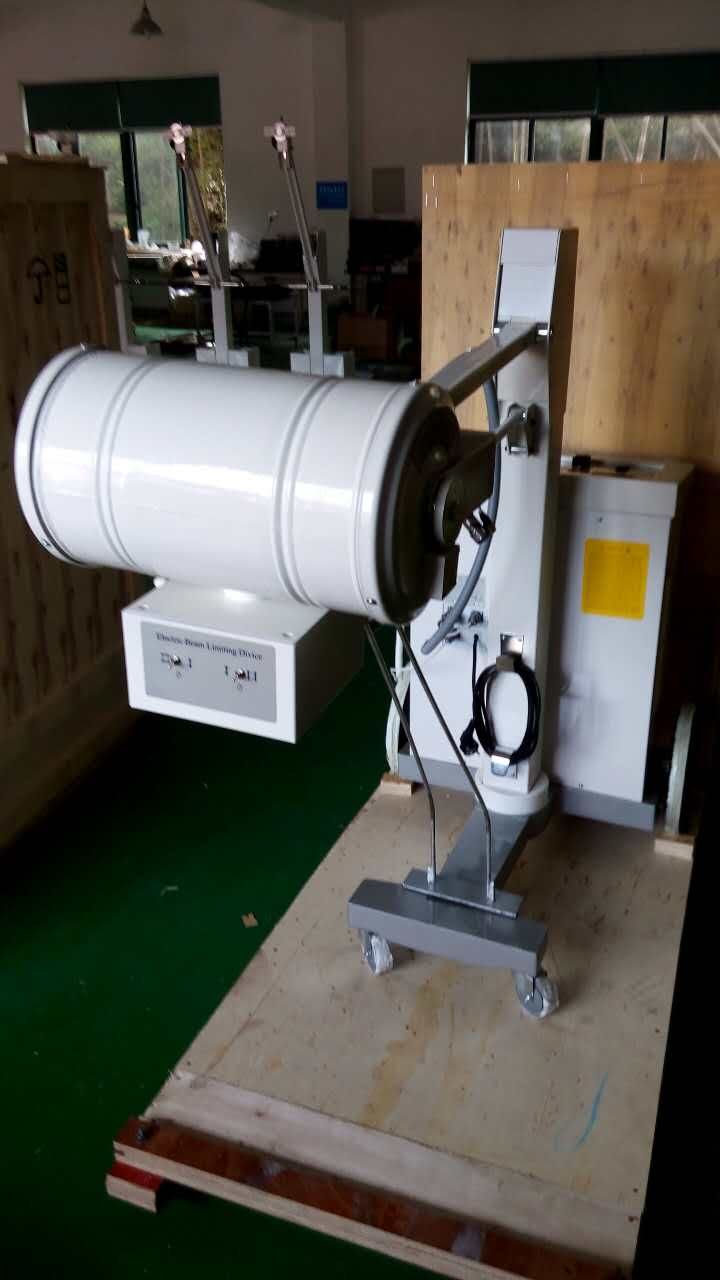

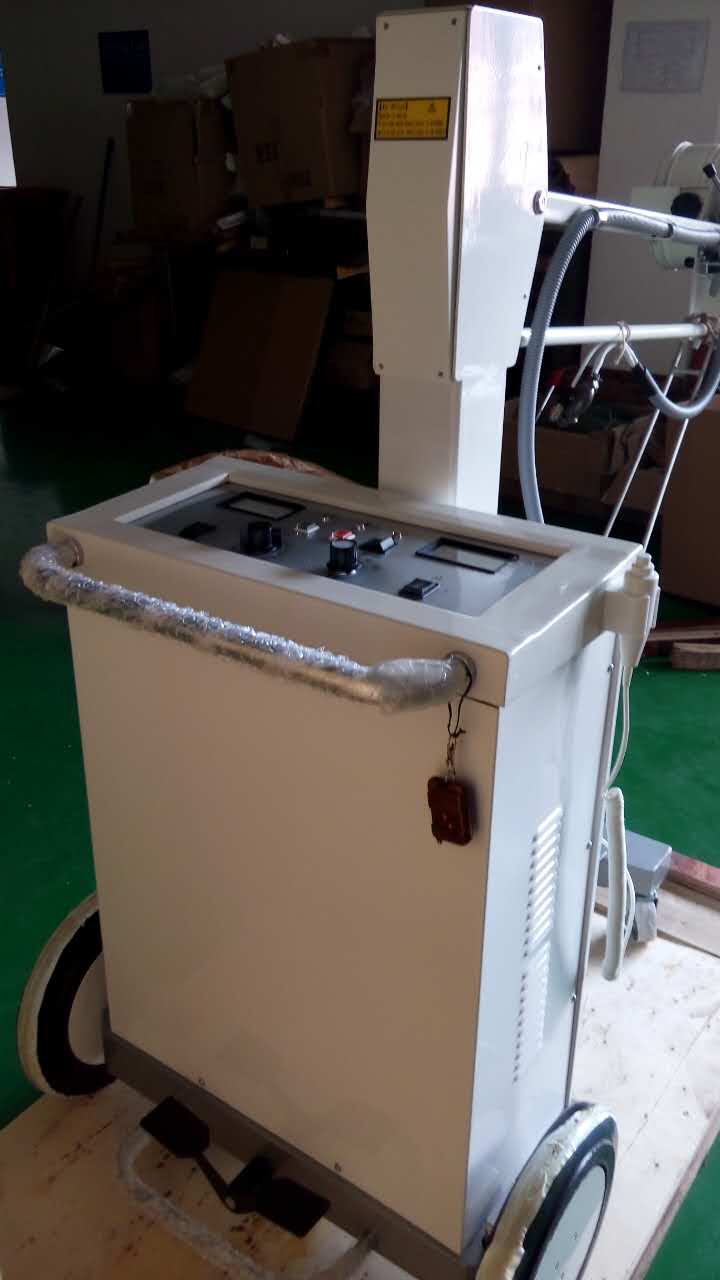

Generator SF100



รหัสสินค้า: VAM-XRAY-SF100 หมวดหมู่: , ,


Share from This to your

Main features

1. Single focus, full-wave rectifier, combined X-ray generator

2.Power voltage (V), photograph kilovolt (KV) infinitely variable control

3.Function of load chains, exposure time control, auto alarm, preheat filament,

subassemblies temperature control, and so on

4.Prestored 8 kinds of photography parameters and select, modify, store

the parameters under the condition of choice

5.Premier high voltage with high power SCR zero control circuit

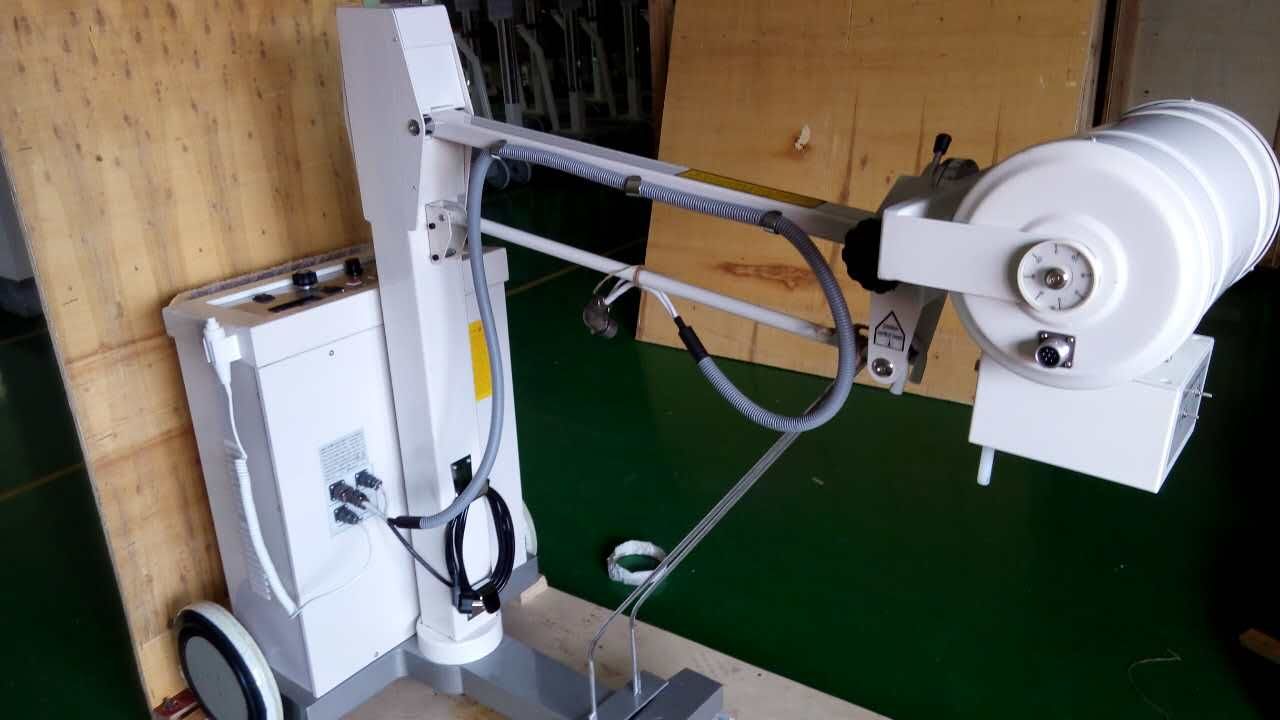

6.Cantilever structure makes the small volume and easily moving

7.SCM control (easy to maintain and repair)

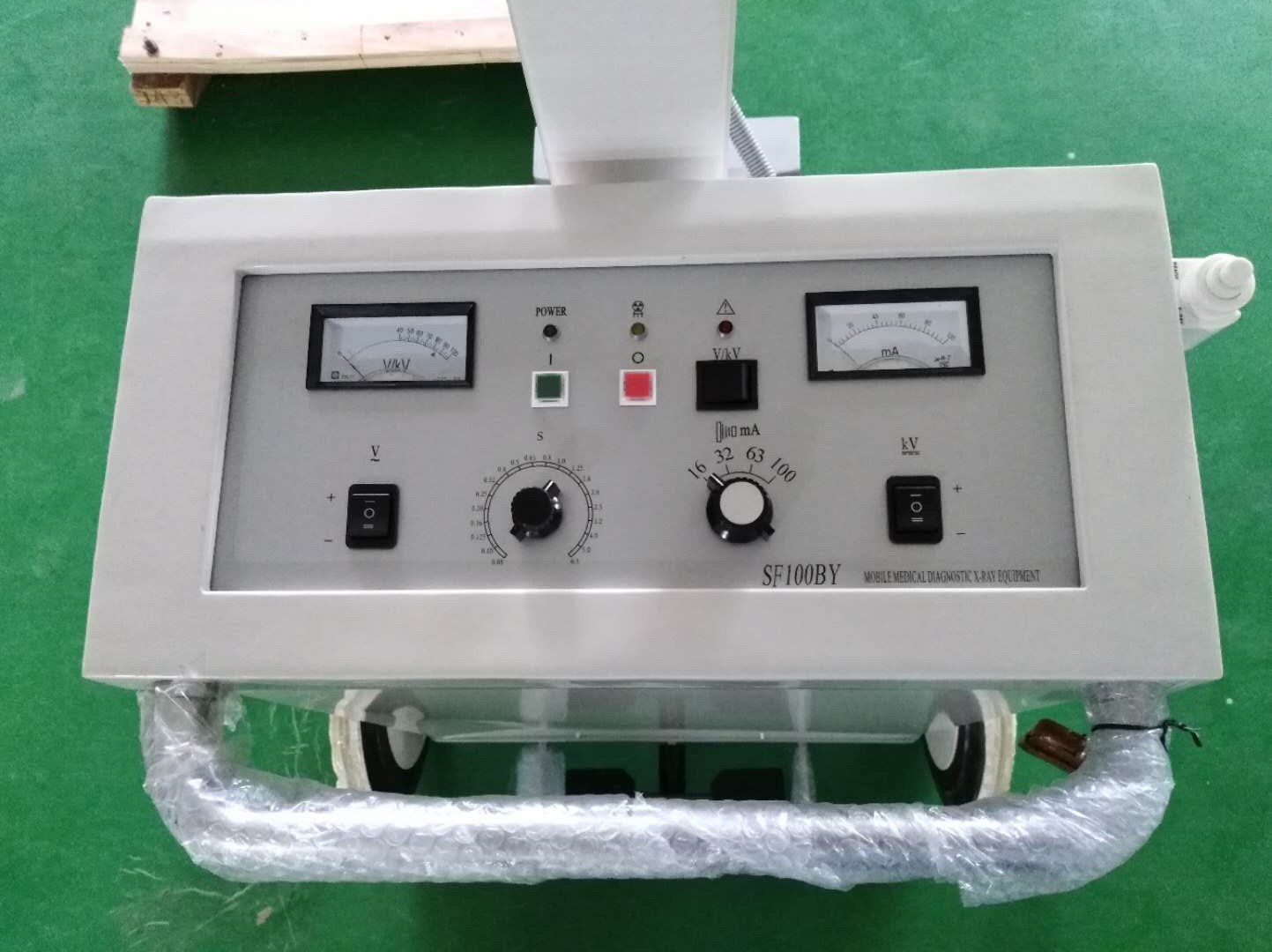

8.High visual and operational console


Main technical indexes
1. Power supply:

Voltage: 180-240 V,

Frequency: 50HZ,

Internal resistivity <1.0Ω

Current 35A, instant

Rating ≥8k VA


Voltage: 50-90 kV

Current 16mA. 32mA 63mA 100mA

time 0.08s ~6.3s

X-ray tube focus 4.3mm X4.3mm

3.Maximum remote control distance: 7m

4.Maximum height of focal spot from floor > 1775 mm,

Minimum height of focal spot from floor < 480 mm

5.Made in: China
